JPMX-301AProduct InformationProduct name: Combined busbar processing machine JP
The LTMC LJMC-30A and LJMC-30B are 630 kN rated-oil-pressure portable three-in-one busbar machines that punch, cut and bend copper and aluminum busbar for Canadian field and small-shop electrical work. The 30A in this page handles 10 mm × 150 mm bar at 170 kg, while the 30B extends to 12 mm × 200 mm at 205 kg, giving fabricators a choice by capacity. Both run on single-phase 220 V / 50 Hz and share standard dies of Ø10.5, Ø13.8, Ø17 and Ø20.5 mm. At 170–205 kg with casters they move to switchgear, transformer and busway site jobs where a fixed line is impractical. Note the 30A envelope here differs from the aid 11 page, so confirm the exact 30A spec before ordering.
LJMC-30A — Rated oil pressure: 630 kN. Test condition: hydraulic punching, cutting and bending. Result: 630 kN drives all three portable units. Baseline: the LJMC-30B in the second table shares the same 630 kN pressure; only capacity and weight differ.
LJMC-30A — Max busbar size: 10 mm × 150 mm. Test condition: punching, cutting and bending envelope. Result: processes bar up to 10 mm thick and 150 mm wide. Baseline: the LJMC-30B in the same page reaches 12 mm × 200 mm, a step up for heavier 600 V busbar joints.
LJMC-30A — Input voltage: 220 V / 50 Hz. Test condition: single-phase site or shop supply. Result: runs on 220 V single-phase at 50 Hz. Baseline: the LJMC-30B uses the same 220 V/50 Hz input; neither runs on Canadian 600 V/60 Hz natively, so a transformer or 50/60 Hz supply is needed.
LJMC-30A — Machine weight: 170 kg. Test condition: as-shipped portable unit. Result: 170 kg on a 690×700×1060 mm frame. Baseline: the LJMC-30B is 205 kg for its 12×200 mm capacity (35 kg more); aid 11 lists the 30A at 195 kg / 200 mm width — a cross-page discrepancy to confirm.
Both portable units run on single-phase 220 V / 50 Hz, not directly on Canadian 600 V / 60 Hz three-phase. On a Canadian site feed them through a small step-down transformer or a 50/60 Hz-rated supply; confirm the supply arrangement with our team.
At 170–205 kg they ship in a wooden case by ocean or air freight to Canadian ports, then clear customs with your broker. Confirm current transit and clearance timing with our team before ordering.
Standard dies (Ø10.5, Ø13.8, Ø17, Ø20.5 mm) and common wear parts ship with or can be reordered for both units. We support Canadian buyers by video and can advise on die sets and a short operator training session; confirm spare-part stock and training format with our team.

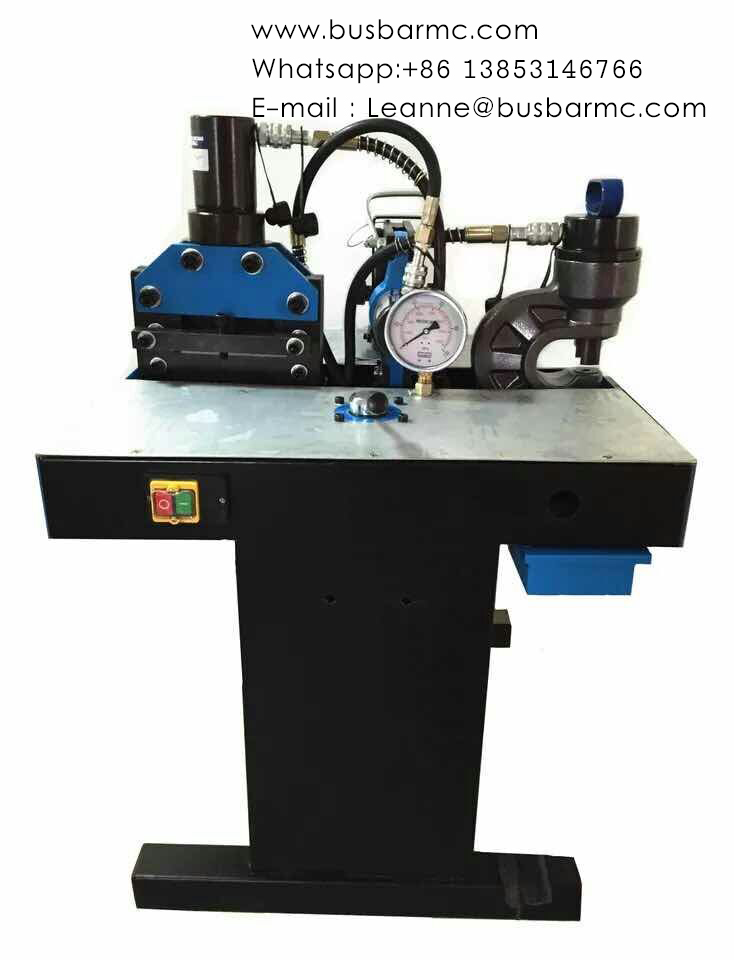

LJMC-30A
Product Information
Product name: Combined busbar processing machine LJMC-30A for copper
Main features: 1. It can be used at any occasion.
2. Small volume and easy to move.
3. High production capacity and high work efficiency.
Product application: Power distribution boxes, transformer, switch canbinet.
Functions
LJMC-30A has three functions : punching , cutting , bending.
It is combined with three portable busbar processing machine.
Processing Samples
Our Factory
Business Partner
Our products sell well in Europe, North America, South America and Southeast Asia.
Our company is a partner of first-line brands such as ABB, Siemens and Schneider.
Techinical Parameters
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 150 |
| Max. processing thickness (mm) | 10 |
| Out dimension (mm) | 690×700×1060 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 760×770×1320 |
| Machine weight (kg) | 170 |
| Item | Model |
| LJMC-30B | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 205 |
