JPMX-503ESK Hydraulic Busbar Processing Machine 16mm 200mm1.Main picture:This se
The LTMC 503U-3-C is a 500 kN three-in-one hydraulic busbar processing machine that punches, shears and bends copper and aluminum busbar up to 16 mm thick and 200 mm wide, aimed at higher-capacity Canadian switchgear and transformer shops. Its three independent stations let one operator run punching, shearing and bending in sequence without changing the workpiece setup. The unit covers Ø4.3–Ø30 mm holes and holds ±1° bending accuracy with ±0.5° repeatability. At 3×5.5 kW drive power and a 1700–1900 kg frame, it sits above the 300 kN class for fabricators handling heavier 600 V busbar runs. Note the product page lists no spec table, so the figures below are drawn from the site's published 503U-3-C family parameters.
503U-3-C — Punching force: 500 kN. Test condition: copper and aluminum busbar punching on the hydraulic station. Result: 500 kN nominal force handles Ø4.3–Ø30 mm holes in 16 mm stock. Baseline: this is one step above the 300 kN 303E-3-S / 303U-3-C class (family_ref.txt), giving Canadian shops more margin on heavy 600 V busbar. Note: the aid 7 page carries no spec table, so this value is taken from the site's published 503U-3-C parameters (family_ref.txt) and needs factory confirmation.
The 503U-3-C's hydraulic and control system is set up for the supply you specify at order; Canadian shops commonly run 208 V, 480 V or 600 V three-phase at 60 Hz. Confirm your exact incoming voltage with our team so we size the transformer and panels for CSA C22.2-compliant assembly.
It ships from Jinan in a wooden case, typically by ocean freight to Canadian ports, then clears customs with your broker. Confirm current transit and clearance timing with our team before ordering, since the 1700–1900 kg frame needs proper crating and handling.
Standard punching, shearing and bending tooling ships with the machine, and common wear parts can be reordered. We support Canadian customers by video and can advise on die sets and a short operator training session; confirm spare-part stock and training format with our team.
503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm
1.Main picture:
This series 503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm has three units: punching shearing and bending. It is easy to adjust each unit to shorten the processing time and improve the production efficiency.
The bending unit uses the imported PLC control system, which has a stable system and high precision. It is used to process copper and aluminum busbars in different specification. By relative operation unit it can and quickly do all kinds of processing to copper and aluminum Busbar, such as shearing, punching(circular hole and oblong hole), flat/Vertical bending and knurling.change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting,flat Crushing pushing and bending.
2.Three working units:

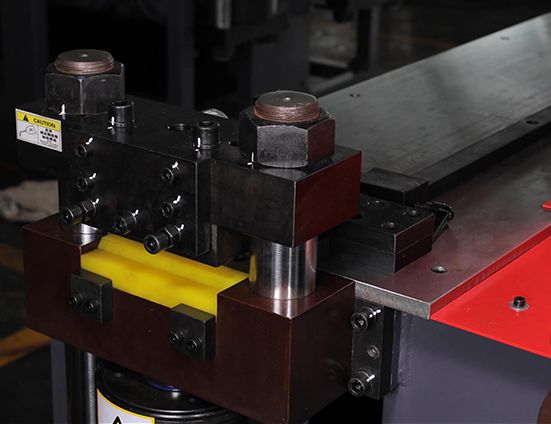

1)Punching unit:

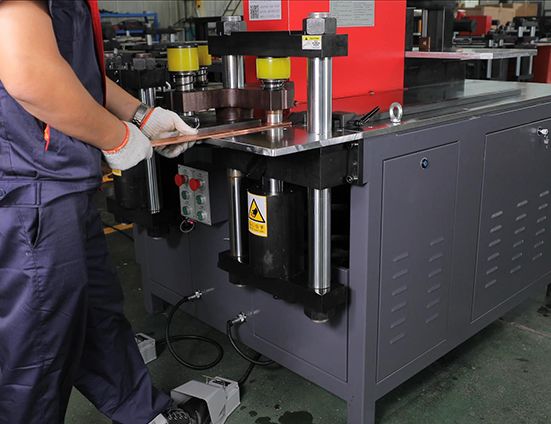

2)Shearing unit:

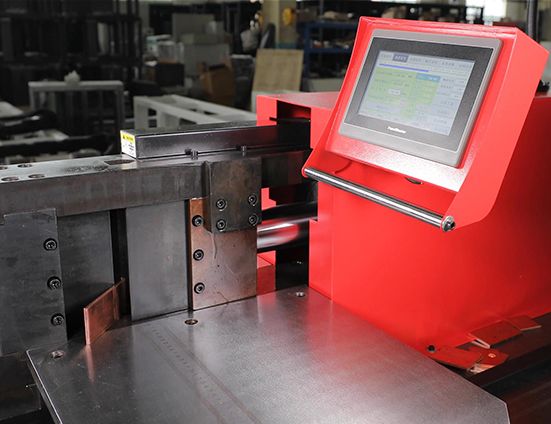

3)Bending units:
3.Packing and shippment:
1)Firstly,the machine must be packed with plastic sheet.
2)Secondly,the machine must be packed in a wood case.
4.Service:
24 hours free hotline will be waiting for you once you have bought our machine.
We will try our best to solve your problems by video.Quality will be our best brand for you.We will be your best choice.
E-mail: [email protected]
Whatsapp: +8613853146766
Skype: Leanne.Li88
www.busbarmc.com
Hot Tags: 503U-3-C cnc busbar processing machine 16mm 200mm, China, suppliers, manufacturers, factory, price
