Product DescriptionJPMX-303SK busbar machine.CNC single working table busbar pro
The LTMC 303U-3 (BMC-303U-3) is a 300 kN three-in-one CNC busbar machine that punches, bends and shears copper and aluminum busbar up to 12 mm thick and 160 mm wide for Canadian switchgear, transformer and busway shops. A single worktable lets the operator move from round, oblong and square hole punching through flat smooth cutting to vertical, flat and U-bending without re-fixturing. Bending holds ±1° accuracy with ±0.5° repeatability, consistent enough for stacked busbar joints in 600 V assemblies. At 1320 kg and a 1720×1220×1240 mm frame it is a compact, movable cell for Ontario and Quebec fabricators. The 3×4 kW drive supports all three stations running in sequence.
303U-3 — Punching force: 300 kN. Test condition: copper and aluminum punching on the single worktable. Result: 300 kN handles Ø4.3–Ø25 mm holes in 12 mm stock. Baseline: the manual 303U-3 in family_ref.txt also lists 300 kN; this BMC-303U-3 page shows 160 mm width and 3×4 kW, closer to the 303U-3-C build.
303U-3 — Max busbar size: 12 mm × 160 mm. Test condition: punching, shearing and bending passes. Result: processes bar up to 12 mm thick and 160 mm wide. Baseline: the family_ref.txt 303U-3 lists 150 mm width; this page extends to 160 mm, matching the 303E-3-S servo envelope.
303U-3 — Bending accuracy: ±1° with ±0.5° repeatability. Test condition: vertical, flat and U-bending of copper bar. Result: ±1° bend angle and ±0.5° repeat on batch work. Baseline: identical to the 303U-3-C and 303E-3-S repeat class (±0.5°); the servo 303E-3-S tightens to ±0.3° (family_ref.txt).
303U-3 — Machine weight: 1320 kg. Test condition: as-shipped floor weight. Result: 1320 kg on a 1720×1220×1240 mm frame. Baseline: the family_ref.txt manual 303U-3 is 1220 kg; this page's 1320 kg matches the 303U-3-C three-pump version.
The CNC and hydraulic drives are configured for the supply specified at order; Canadian shops commonly run 208 V, 480 V or 600 V three-phase at 60 Hz. Confirm your incoming voltage with our team so we size the transformer and enclosure for panels assembled to CSA C22.2 requirements.
Machines ship from Jinan in a wooden case, typically by ocean freight to Canadian ports, then clear customs with your broker. Confirm current transit and clearance timing with our team before ordering.
Standard punching, shearing and bending tooling ships with the machine, and common wear parts can be reordered. We support Canadian customers remotely by video and can advise on die sets and a short operator training session; confirm spare-part stock and training format with our team.
Product Description

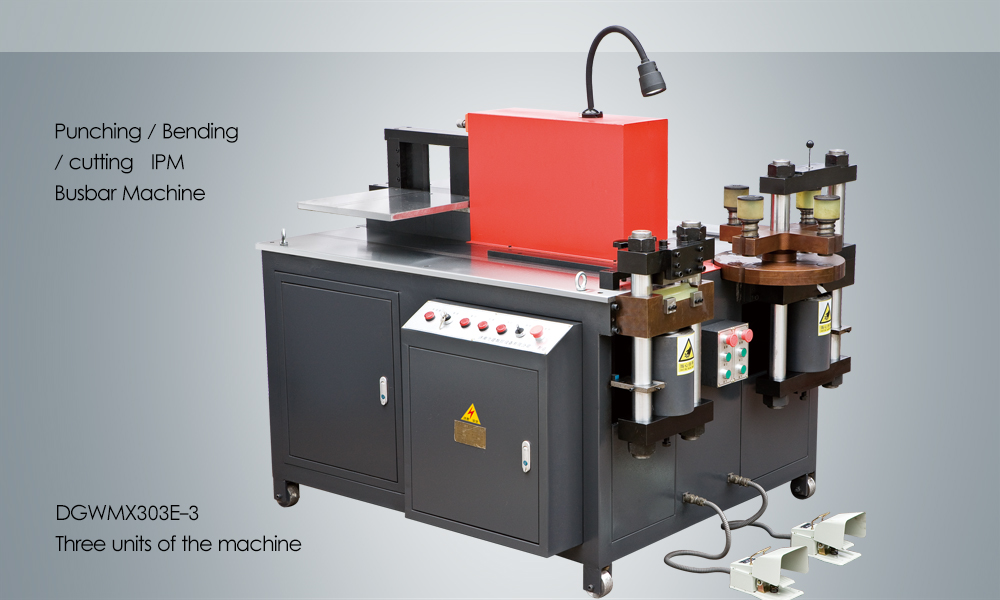

BMC-303U-3 busbar machine.
CNC single working table busbar processing machine. It has punching, bending, and cutting functions.
The processing size is 12mm in thickness and 160mm in width.
Processing samples
The punching function.
It can punch round hole, oblong hole, and square hole.
The cutting function
The cutting surface is flat and smooth.
The bending function
It can do vertical bending, flat bending, and U-bending.
Other functions
Our Service
We are responsible for your after-sales service.
If you have any problems, feel free to contact us.
You can consult about machine problems, use problems, and other problems that you can imagine.
We have clients more than 100 countries.
Contact Me
WhatsApp: +8613853146766
Skype:Leanne.Li88
Official Website: http://www.busbarmc.com/
E-mail: [email protected]
Technical Parameter
| Items | Model |
| 303U-3 | |
| Nominal force (kn) | 300 |
| Punching dia. range (mm) | ф4.3～ф25 |
| Max. thickness (mm) | 12 |
| Max. width (mm) | 160 |
| Max. shearing thickness (mm) | 12 |
| Max. shearing width (mm) | 160 |
| Max. horizontal bending width (mm) | 160 |
| Max. Horizontal bendind thickness (mm) | 12 |
| Max. vertical bending size (mm) | 10×100 |
| Power (kw) | 3×4KW |
| Bending precision (degree) | ±1° |
| Repeat bending precision (degree) | ±0.5° |
| First table size (mm) | 1650×1050 |
| Second table size (mm) | ----- |
| Outside dimension (mm) | 1720×1220×1240 |
| Container size（mm） | 1800×1300×1450 |
| Total weight（kg） | 1320KG |
