The LTMC HQ-600-B is a 600 kN double-head busbar trunking (busduct) bending press that forms both ends of a connection busbar in a single cycle for Canadian busway and busduct manufacturers. Its two hydraulic heads bend double bends at each end at once without flipping the bar, cutting steps, time and labour versus single-end bending that must be re-oriented between passes. It handles busbar from 3×30 mm to 6×200 mm and runs on a 3600×1500×1000 mm footprint. Large-tonnage cylinders with a high-flow gear pump keep cycle speed up, and major components are name-brand for stable North American service.
HQ-600-B — Nominal pressure: 600 kN. Test condition: two hydraulic heads bending both busbar ends. Result: 600 kN rated pressure. Baseline: page states double bends form in one pass vs re-orienting a single-end bender between passes, removing a flip step; family_ref.txt lists HQ-600-B at 600 kN confirming the rating.
HQ-600-B — Machining range: 3×30 mm to 6×200 mm. Test condition: copper busbar connection ends for busduct lines. Result: processes bars 3–6 mm thick, 30–200 mm wide. Baseline: matches family_ref.txt HQ-600-B (3×30 – 6×200 mm); covers standard busway link sections.
HQ-600-B — Overall size: 3600×1500×1000 mm. Test condition: installed double-head press footprint. Result: 3600 mm long × 1500 mm wide × 1000 mm high. Baseline: matches family_ref.txt HQ-600-B envelope; compact for a double-end bender on a busduct line.
It uses a hydraulic double-head drive rated at 600 kN, fed from shop 600 V, 60 Hz through a transformer. Confirm the exact supply and pump motor with our team.
The HQ-600-B is supplied for busduct and busway work that feeds assemblies built to CSA C22.2 in Canada and UL in the US. Send us the component and documentation list your AHJ review asks for and we will match the build to it.
Delivery and customs clearance depend on configuration and port, so confirm current lead time and Incoterms with our team. Major branded components support stable North American service and spare-part supply.
HQ-600-B Double heads busbar trunking system copper bending machine
Main Function:

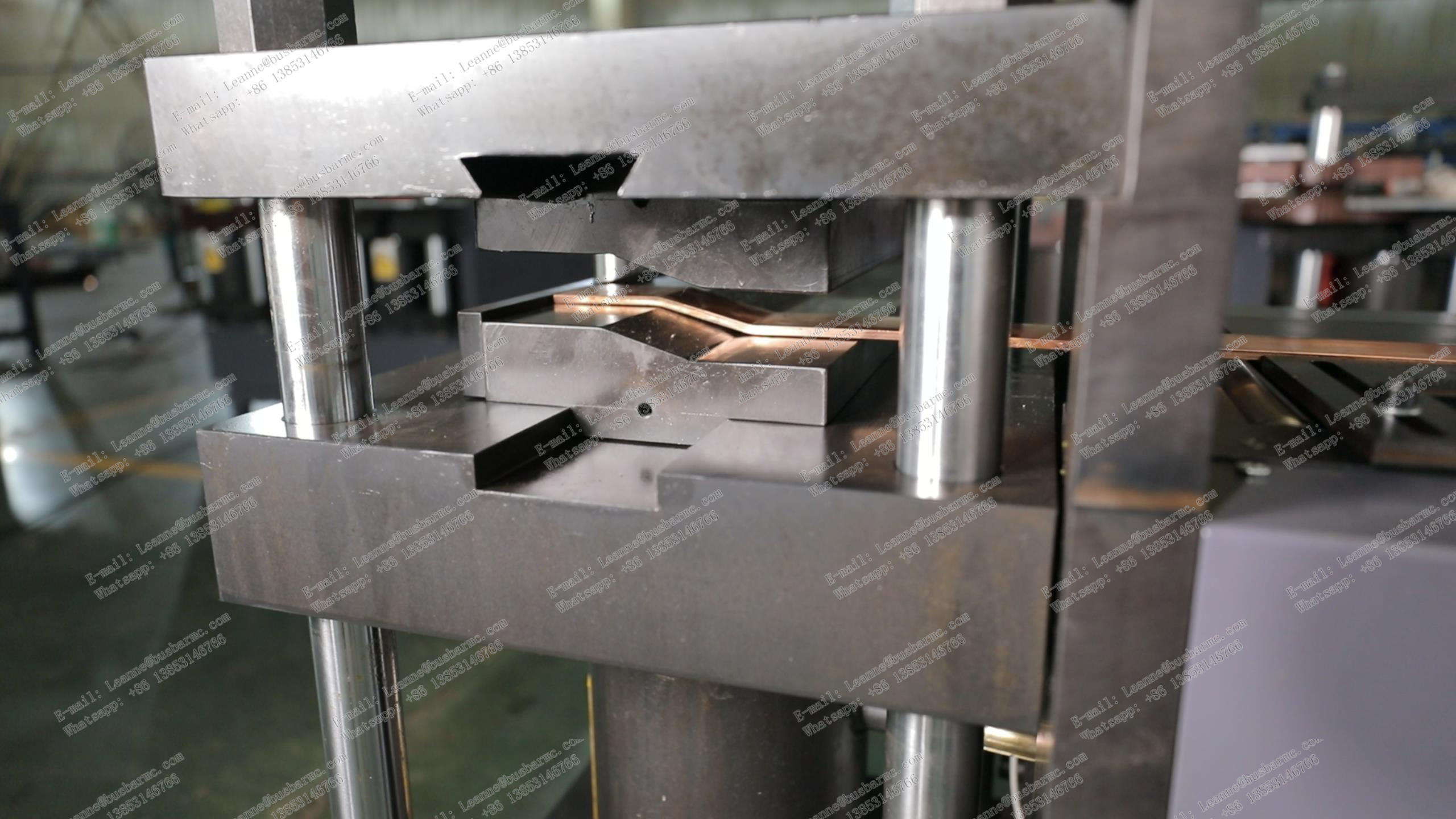

Double heads bus dust bending press a new type of processing equipment developed by our company,the main functions is bending the two ends of connection busbar of the line of the bus dust,and bending double bends once for each end of the bus dust.No need to change the direction of one bus dust,with the advantages of high processing speed,less steps,high accuracy,saving time and labor etc.
Main Features:
1.This machine mainly for bending the two ends of connection busbar of the line of the bus dust.
2.The two ends of the machine adopts hydraulic working mode, which has the advantages of high pressure, stable performance and so on.
3.The double bends of the two ends of the busbar are formed once, fast processing speed, high efficiency.
4.Large tonnage hydraulic cylinder with large flow gear pump, to ensure the running speed of the equipment.
5.Major components are well-known brands, to ensure the stability of the device.
Nominal pressure
600KN
Machining range
3 * 30-6 * 200mm
Overall size
3600 * 1500 * 1000mm
high efficiency
