sheet metal half-shear button1.This busbar processing machine is mainly to punching press2.Steel plate welded bed,stress annealing treatment after welding, to ensure the rack is not deformed after the long-term used.3.PLC controlling, with digital axis system.Easy to carry out artificial positioning.The machine can be stopped at the time of unmanned operation.5.High flow gear pump,processing with speed,Step speed can reach12 times/min.
The LTMC SXC30-550 is a 300 kN hydraulic punching press with a 550 mm throat depth, built for Canadian switchgear and panel shops that punch round and oblong holes in copper, aluminium busbar and sheet up to 6 mm thick in low volume or on site. It uses a stress-relieved welded steel bed, PLC control with a digital axis for manual positioning, and a high-flow gear pump reaching a 12 strokes/min step speed. The 550 mm throat suits standard busbar widths and enclosure work, and the press stops safely when unattended. It wires to 600 V / 60 Hz Canadian shop power through the supplied control panel.
SXC30-550 — Nominal pressure: 300 kN. Test condition: hydraulic punching press on copper/aluminium busbar and sheet with PLC digital-axis control. Result: 300 kN nominal pressure drives the punch through up to 6 mm stock. Baseline: family reference lists the same 300 kN for SXC30-550 and its sibling SXC30-750; both share the rating, so pressure is not the differentiator between the two. Canadian shops size it for 600 V busbar holes without a full CNC line.
SXC30-550 — Maximum processing diameter: 60 mm. Test condition: punching round and oblong holes in busbar with the selected die. Result: maximum hole diameter 60 mm. Baseline: family reference shows 60 mm max diameter for both SXC30-550 and SXC30-750; matched to the 6 mm max thickness. This covers typical 600 V switchgear lug and joint holes for Ontario and Quebec panels.
SXC30-550 — Maximum processing thickness: 6 mm. Test condition: punching copper/aluminium busbar at the rated 300 kN and 12 strokes/min step speed. Result: punches stock up to 6 mm thick. Baseline: family reference lists 6 mm max thickness for SXC30-550 and SXC30-750; the 3-in-1 303U-3 family tops out at 12 mm, so this press suits thinner busbar and sheet. Use it for light busbar and enclosure punching on 600 V / 60 Hz shop power.
SXC30-550 — Throat depth: 550 mm. Test condition: throat reach from the column to the punch center. Result: 550 mm throat depth. Baseline: family reference lists 550 mm for SXC30-550 versus 750 mm for the SXC30-750 sibling — the 550 mm model is the shorter-throat version for standard busbar widths. For Canadian switchgear builders it suits typical enclosure and busbar work without the deeper reach.
The SXC30-550 is a 300 kN hydraulic press with a PLC and digital axis that Canadian shops wire to 600 V / 60 Hz three-phase through the supplied control panel. Confirm the exact motor and starter rating with our team. No CSA or UL product certification is claimed on this page.
The SXC30-550 punches busbar and sheet that goes into switchgear assembled to CSA C22.2 in Canada and UL in the US. Share your hole range and documentation requirements and our team will confirm the tooling.
The SXC30-550 ships from the LTMC line; confirm current lead time, freight and Incoterms with our team. Dies, seals, the gear pump and PLC parts are stocked for service in Ontario and Quebec, and training on manual positioning is arranged at commissioning. The 550 mm throat model is built to order.
SXC30-550 hydraulic presses Sheet metal processing machine
Main Features:

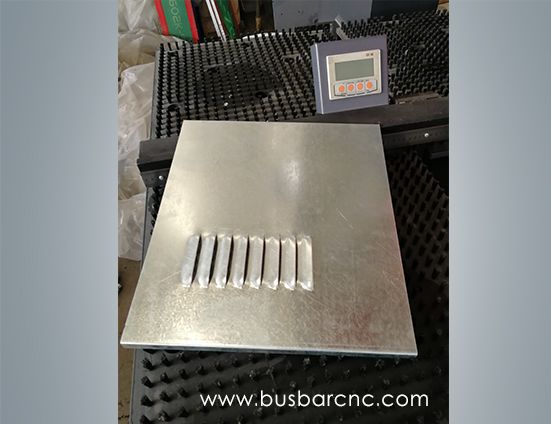

sheet metal half-shear button
1.This busbar processing machine is mainly to punching press
2.Steel plate welded bed,stress annealing treatment after welding, to ensure the rack is not deformed after the long-term used.
3.PLC controlling, with digital axis system.Easy to carry out artificial positioning.The machine can be stopped at the time of unmanned operation.
5.High flow gear pump,processing with speed,Step speed can reach12 times/min.
Nominal Pressure
300KN
Max Processing Diameter
60MM
Max Processing Thickness
6MM
Throat Depth
550MM
